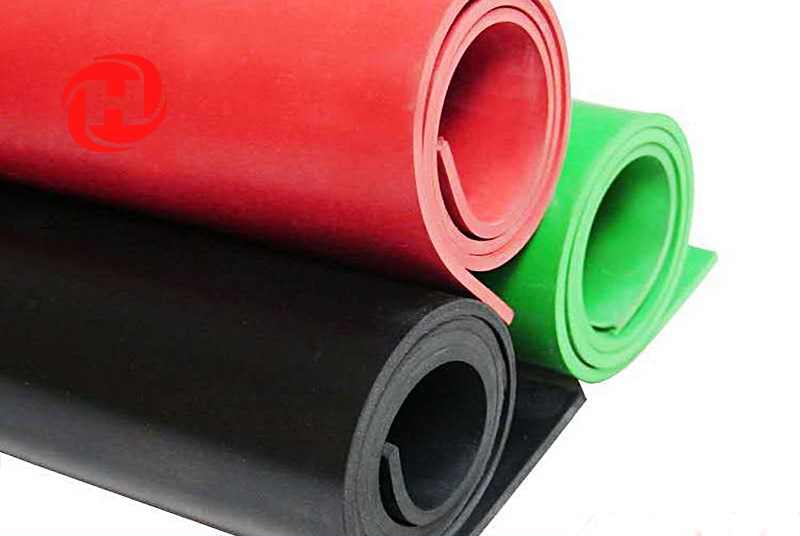

QHX-H Insulation Rubber Sheet
-
• Noted •
Through the 43KV test, it works normally at 660V. Strong elasticity, excellent insulation performance and shiny surface. Store in a dry, ventilated environment, away from heat, and away from the floor and walls more than 20cm. Avoid contamination by acids, alkalis and oils. Do not open - air to avoid direct sunlight.
• Size •
Rubber sheet of different thicknesses should be used in different voltage levels.
Voltage(KV)
Thickness(mm)
Experimental time(min)
Experimental standard value(KV)
Actual experiment time(min)
Test Results
10KV
5mm
1min
10KV
2min
≥15KV
15KV
6mm
1min
10KV
2min
≥15KV
25KV
8mm
1min
25KV
2min
≥30KV
35KV
10mm
1min
35KV
2min
≥35KV
35KV
12mm
1min
35KV
2min
≥35KV
Color : Black,Green,Red,Grey Packing :50KG/Roll , 75KG/Roll,100KG/Roll, other can be customized
• Application •
Widely used in substations, power plants, power distribution rooms, laboratories, and field live working.
-
-
